HITACHI ZX120 ZX130LCN ZX120-3 ZX130-3 ZX135US Çömlekçiler Swing Motor/Swing Gearbox/Swing Reduction Gear

  • HITACHI ZX120 ZX130LCN ZX120-3 ZX130-3 ZX135US EXCAVATORS SWING MOTOR/SWING GEARBOX/SWING REDUCTION GEARA
  • HITACHI ZX120 ZX130LCN ZX120-3 ZX130-3 ZX135US EXCAVATORS SWING MOTOR/SWING GEARBOX/SWING REDUCTION GEARA
  • HITACHI ZX120 ZX130LCN ZX120-3 ZX130-3 ZX135US EXCAVATORS SWING MOTOR/SWING GEARBOX/SWING REDUCTION GEARA
  • HITACHI ZX120 ZX130LCN ZX120-3 ZX130-3 ZX135US EXCAVATORS SWING MOTOR/SWING GEARBOX/SWING REDUCTION GEARA
  • HITACHI ZX120 ZX130LCN ZX120-3 ZX130-3 ZX135US EXCAVATORS SWING MOTOR/SWING GEARBOX/SWING REDUCTION GEARA
  • HITACHI ZX120 ZX130LCN ZX120-3 ZX130-3 ZX135US EXCAVATORS SWING MOTOR/SWING GEARBOX/SWING REDUCTION GEARA
Place of Origin China
Marka adı TQ
Sertifika CE,ISO
Model Number 9177550 SWING MOTOR/SWING GEARBOX/SWING REDUCTION GEARA FOR HITACHI ZX120 ZX130LCN ZX120-3 ZX130-3 ZX135US EXCAVATORS PARTS AFTERMARKET ORIGINAL
Minimum Order Quantity 1 PCS
Fiyat Negotiable price
Ambalaj bilgileri Tahta sandık veya gerektiği gibi
Delivery Time 5-8 Weekdays
Payment Terms Western Union,T/T
Yetenek temini 300 adet / Ay

Ücretsiz numuneler ve kuponlar için bana ulaşın.

Naber:0086 18588475571

sohbet: 0086 18588475571

Skype: sales10@aixton.com

Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.

x
Ürün ayrıntıları
Product name 9177550 SWING MOTOR/SWING GEARBOX/SWING REDUCTION GEARA FOR HITACHI ZX120 ZX130LCN ZX120-3 ZX130-3 ZX135US EXCAVATORS PARTS AFTERMARKET ORIGINAL Uygulanabilir makine modeli Hitachi ZX120 ZX130LCN ZX120-3 ZX130-3 ZX135US Ekskavatörler
Applicable Industries： Mechanical repair shops, retail, construction, energy, mining category SWING MOTOR
Durum YENİ / YENİDEN YAPILMIŞ Brand TQ
Vurgulamak

ZX120 ZX130LCN SWING MOTOR

,

ZX135US Swing Motor

,

ZX120-3 ZX130-3 Swing MOTOR
Mesaj bırakın
Ürün Açıklaması

9177550 SWING MOTOR/SWING GEARBOX/SWING REDUCTION GEARA FOR HITACHI ZX120 ZX130LCN ZX120-3 ZX130-3 ZX135US EXCAVATORS PARTS AFTERMARKET ORIGINAL


PRODUCT DESCRIPTION
Model: 9177550 SWING MOTOR/SWING GEARBOX/SWING REDUCTION GEARA FOR HITACHI ZX120 ZX130LCN ZX120-3 ZX130-3 ZX135US EXCAVATORS PARTS AFTERMARKET ORIGINAL category: SWING MOTOR
Brand: TQ Place of Origin:Other Country
Condition: Original & Oem Warranty: 12 months
MOQ: 1 pcs Production Capacity: 1000pcs /Month
Standard or Nonstandard: Standard Payment Term: L/C,T/T, Western Union, Tradeassurance
Delivery Time: 1-3 days (depend on order) Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS
Guarantee: We will check and send detailed pictures to buyers for confirmation

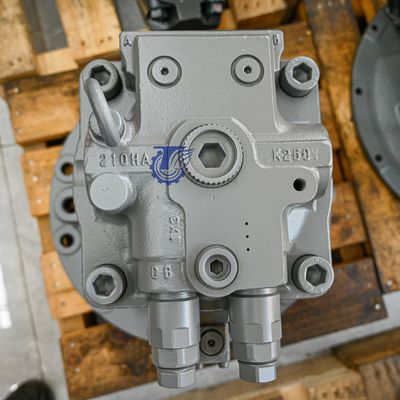

HITACHI ZX120 ZX130LCN ZX120-3 ZX130-3 ZX135US Çömlekçiler Swing Motor/Swing Gearbox/Swing Reduction Gear 0

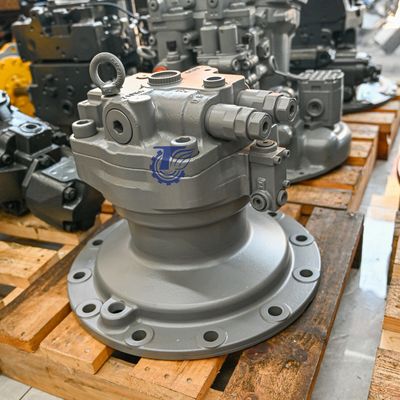

HITACHI ZX120 ZX130LCN ZX120-3 ZX130-3 ZX135US Çömlekçiler Swing Motor/Swing Gearbox/Swing Reduction Gear 1

Parts on group MOTOR;OIL (SWING):
Pos. Part No Qty Parts name Comments

9177550 [1]   MOTOR;OIL I 9196961 <for assembly of machine>

-9196961 [1]   MOTOR;OIL <for transportation>
1 8080152 [1]   CASING
01A. +++++++ [1]   CASING;MOTOR
01B. +++++++ [1]   PLUNGER;ASSY
2 4320490 [1]   SEAL;OIL
3 3085794 [1]   SHAFT
5 991342 [1]   RING;RETAINING
6 4402669 [1]   BRG.;ROL.
7 940144 [1]   RING;RETAINING
8 4396102 [1]   PLATE;SWASH
10 2043442 [1]   ROTOR
12 4413753 [1]   SPRING;DISC
13 4413700 [1]   BUSHING
14 8071556 [9]   PISTON
15 3081727 [1]   RETAINER
17 3087818 [4]   PLATE;FRICTION
19 3075729 [4]   PLATE
21 3084716 [1]   PISTON
22 4413765 [1]   O-RING
23 4413764 [2]   O-RING
24 4434436 [1]   SPRING;DISC
26 3089613 [1]   PLATE;VALVE
28 9177595 [1]   VALVE;BRAKE I 9198979 <for assembly of machine>
28 -9198979 [1]   VALVE;BRAKE <for transportation>
29 4413768 [1]   BRG.;NEEDLE
30 4413761 [2]   PIN;KNOCK
32 A590916 [4]   WASHER;SPRING
34 M341650 [4]   BOLT;SOCKET
36 M492564 [2]   SCREW;DRIVE
37 3088886 [1]   NAME-PLATE
41 9134110 [3]   PLUG
41A. 957366 [1]   O-RING
43 9134109 [1]   PLUG
43A. 4506408 [1]   O-RING
45 4399892 [1]   POPPET
46 4398846 [1]   SPRING;COMPRES.
47 4452178 [1]   WASHER;PLANE
50 4398889 [1]   SPRING;COMPRES.


Parts on group SWING DEVICE:
Pos. Part No Qty Parts name Comments
0 2044629 [1]   SHAFT;PROP.
1 3083710 [1]   SLEEVE
2 A811095 [1]   O-RING
3 4430041 [1]   BRG.;ROL.
4 4411143 [1]   SEAL;OIL
5 1027901 [1]   HOUSING
6 4408119 [1]   BRG.;ROL.
7 3083674 [1]   NUT
8 4407745 [1]   PLATE;LOCK
10 J901020 [2]   BOLT
11 2042965 [1]   CARRIER
12 4176070 [1]   PLATE;THRUST
13 4408102 [3]   PIN
14 4414855 [3]   BRG.;NEEDLE
15 3084940 [3]   GEAR;PLANETARY
16 4414833 [6]   PLATE;THRUST
17 4116308 [6]   PIN;SPRING
19 3092035 [1]   GEAR;SUN
20 2045146 [1]   GEAR;RING
21 M341440 [12]   BOLT;SOCKET
23 2042964 [1]   CARRIER
24 4244904 [1]   PLATE;THRUST
25 4408122 [3]   PIN
26 4430040 [3]   BRG.;NEEDLE
27 3083741 [3]   GEAR;PLANETARY
28 4408002 [3]   PLATE;THRUST
29 3083740 [1]   GEAR;SUN
31 3087949 [1]   PIPE
33 94-2012 [1]   PLUG
61 8082514 [1]   COVER (for transportation)
62 J011040 [7]   BOLT;SEMS
62 J271040 [7]   BOLT;SEMS T J901040 (for transportation)




J222010
64 94-2011 [1]   PLUG (for transportation)
65 3053093 [1]   NAME-PLATE (for transportation)
66 M492564 [2]   SCREW;DRIVE (for transportation)
101 9177550 [1]   MOTOR;OIL I 9196961 (for assembly of machine)
101 9196961 [1]   MOTOR;OIL (for transportation)
102 927488 [1]   RING;RETAINING
106 4298608 [1]   CAP
107 M341025 [7]   BOLT;SOCKET
108 3053093 [1]   NAME-PLATE
109 M492564 [2]   SCREW;DRIVE
114 4449144 [1]   PIPE
115 3090862 [1]   GAUGE;LEVEL
116 4449182 [1]   PIPE
117 4436535 [1]   SENSOR;PRES.
200 9196343 [1]   SWING DEVICE (WITHOUT MOTOR)

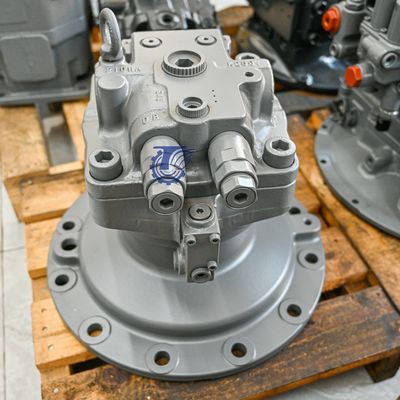

HITACHI ZX120 ZX130LCN ZX120-3 ZX130-3 ZX135US Çömlekçiler Swing Motor/Swing Gearbox/Swing Reduction Gear 2

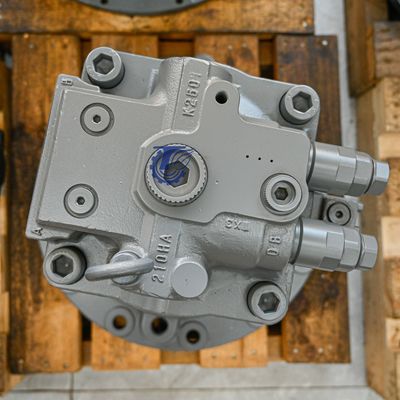

HITACHI ZX120 ZX130LCN ZX120-3 ZX130-3 ZX135US Çömlekçiler Swing Motor/Swing Gearbox/Swing Reduction Gear 3

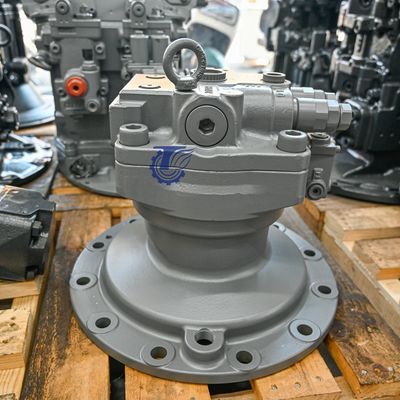

HITACHI ZX120 ZX130LCN ZX120-3 ZX130-3 ZX135US Çömlekçiler Swing Motor/Swing Gearbox/Swing Reduction Gear 4

HITACHI ZX120 ZX130LCN ZX120-3 ZX130-3 ZX135US Çömlekçiler Swing Motor/Swing Gearbox/Swing Reduction Gear 5

HITACHI ZX120 ZX130LCN ZX120-3 ZX130-3 ZX135US Çömlekçiler Swing Motor/Swing Gearbox/Swing Reduction Gear 6
